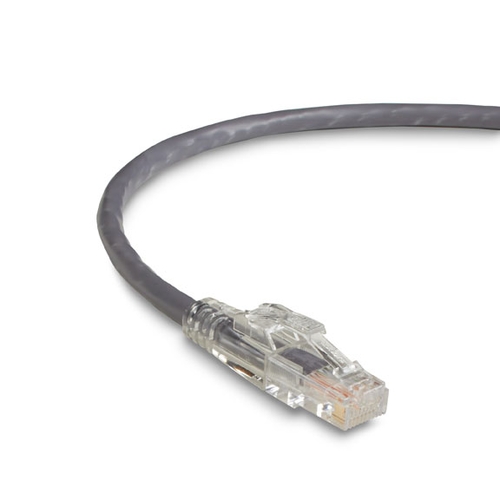

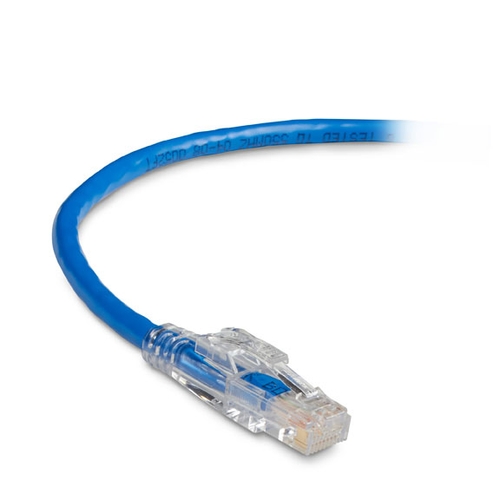

Black Box GigaBase 3 Premium LSZH CAT5e patch cables with locking connectors give you the ability to lock down critical network ports, offering three levels of security to choose from:

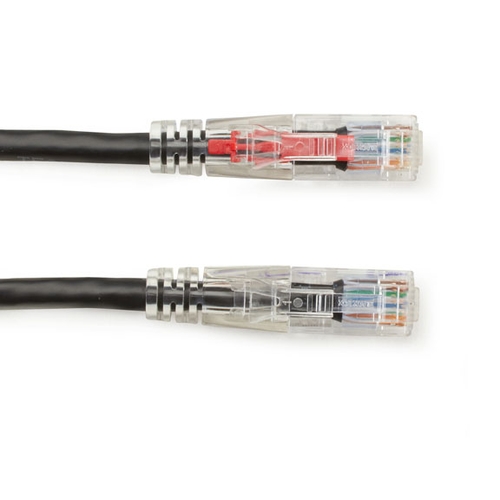

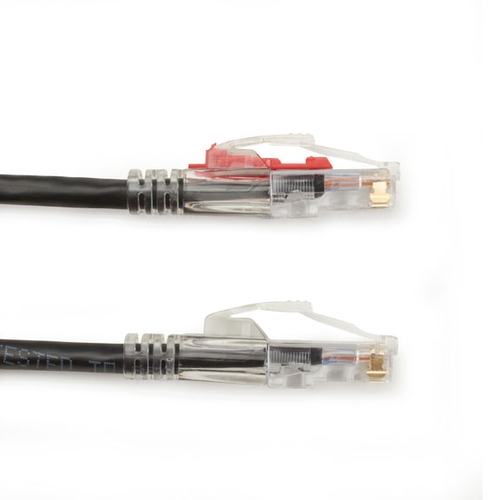

Red Pin: Locked—
Prevent unauthorized access and tampering of mission-critical and publicly accessible ports in government offices, lobbies, retail establishments and more. To lock down a port, a Red Locking pin inserts into the patented LockPORT boot of the cable. In order for the pin to be removed and the cable disconnected from its port, it must be released with a Removal Tool (KEY-CL). The Red Locking pins can be purchased in packs of 10 (LP50-RD-10PAK) and 25 (LP50-RD-25PAK).
Green Pin: Secured—
Prevent accidental disconnects in the office, manufacturing and industrial applications, and more. To secure a port, a Green Locking pin inserts into the cable’s LockPORT boot. This pin features butterfly tabs that can be pressed with fingers to release it, and does not require a Removal Tool. The Green Locking pins can be purchased in packs of 10 (LP40-GN-10PAK) and 25 (LP40-GN-25PAK).
No Pin: Protected—
Use without locking pins, the same as you would an ordinary snagless connector. Even without the pins, the rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison with standard connectors.
Premium performance—
On top of their secure, lockable design, Black Box GigaBase 3 Premium CAT5e patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e spec, greatly reducing impedance, structural return loss and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity, and features LSZH rated jacketing that limits emission of smoke and corrosive gases in the event of a fire. These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. Available in a variety of lengths and colors, Black Box’s GigaBase 3 line of cabling gives you the flexibility to build your install however you want.
Approvals RoHS, CE
StandardsTIA/EIA-568-C.2 Category 5e
Connector 1 RJ45 Male
Connector 2 RJ45 Male
Connector Plating 50u
Cable Jacket Type LSZH
Cable Type Stranded
Conductor Gauge 24 AWG
Shielded No
Snagless Connector Yes
Frequency Up to 350 MHz
Attenuation (Maximum) 22.5dB at 100 MHz, 45.8dB at 350MHz
Impedance 100+/-15 ohms
NEXT (Minimum) 35.3dB at 100 MHz, 27.1dB at 350MHz
PS-NEXT (Minimum) 32.3dB at 100 MHz, 24.1dB at 350MHz
Return Loss (Minimum) 19dB at 100 MHz, 4.56dB at 350MHz
